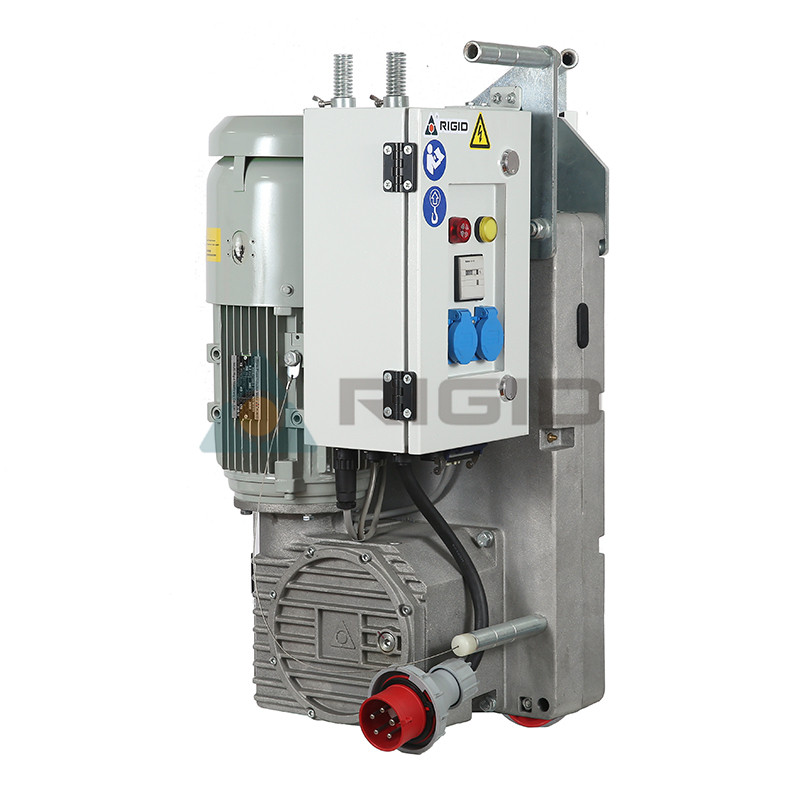

The rope is not connected which makes it compact, lightweight and very easy to handle. The unrestricted wire rope lengths capability of the Rigid 2000kg Traction Hoist For Elevator makes it possible to utilise unlimited lifting heights and traction lengths.



1.The robust, precisely machined housing of die-cast aluminum, ensures a low dead-weight and outstanding rigidity.

2. Gearing and drive sheave is fabricated from hardened steel.

3. Universal attachment of the winches is capable by means of a central load pin, and two screws.

4. Motor protection: Protected to IP55 as standard.

5. Standard 2000kg Traction Hoist For Elevator operating voltage: 400V, 3ph, 50Hz (voltage and frequency are available upon request).

6. Control Voltage: 24V for mobile application units and 42V for the stationary applications models.

7. Phase monitoring: As standard on mobile application models, not available on stationary units.

8. Hoist motor, as standard is fitted with a thermal overload protection device.

9. Certification: Certified by and independent inspection institute (TUV).

10. Drive sheave and pressure rollers of special nitrided steel with a surface hardness of approximately 70 HRC, guaranteeing low wear of these components.

11. The fully-synthetic special oil ensures highest possible efficiency for quiet running characteristics, in a temperature range of -40°C to 70°C.

12. Standardized components ensures easy access to all wearing parts.



● Equipped with phase sequence protection and use of timing functions;

● Equipped with external power supply and anti-derailment switch interface;

● External handle switch with emergency-stop protection function;

● Equipped with cordless protection function(optional);

● Adopting an integrated elecronic control system (optional split type).
