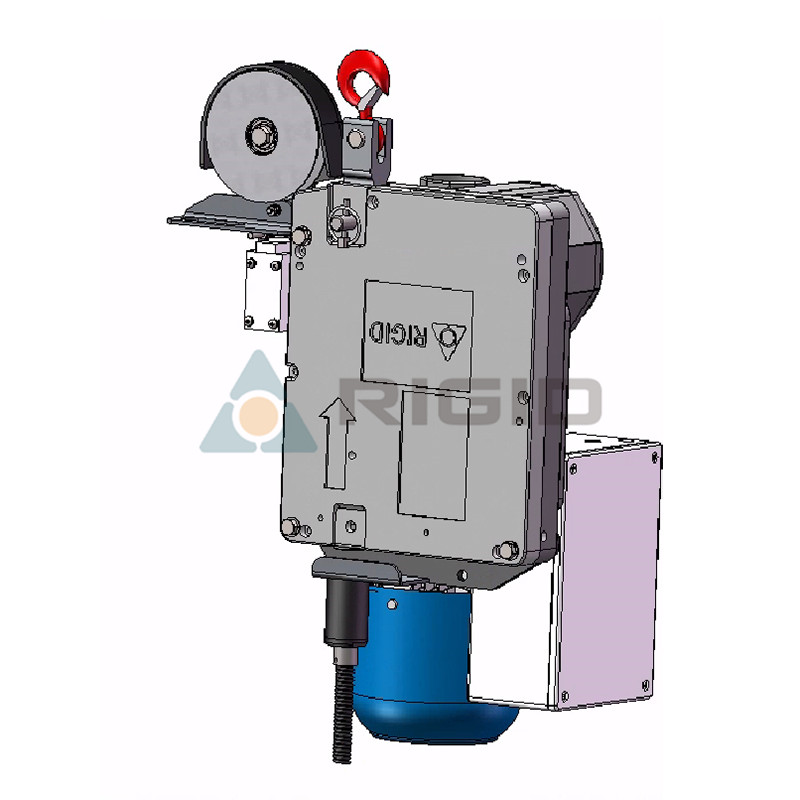

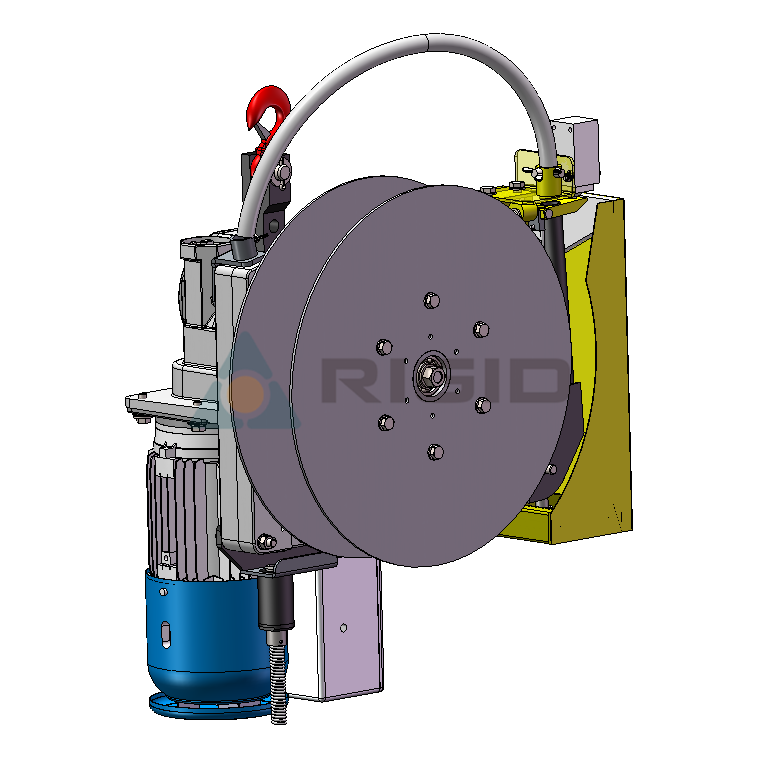

Features and Benefits of Material Lifting Hoists
1. High-quality MT50 material lifting hoist uses a robust, precision-machined die-cast aluminum housing that ensures low deadweight and excellent rigidity, is powerful and easy to transport, and provides extreme efficiency and durability, even in harsh working conditions.
2. The MT50 material lifting hoist has been developed and designed taking into account all relevant standards and safety regulations, including the configuration of upper and lower limits to effectively prevent wire rope from falling off.
3. Optionally, a long-distance wireless remote control can be installed, with a distance of up to 300 meters.
4. Motor protection: Protected to IP55 as standard.
5. Standard operating voltage: 300V/400V, 1-phase/3-phase, 50Hz (voltage and frequency available on request).
Technical Parameters of Material Lifting Hoists
|
Model |
Capacity
kg |
Description |
Lifting & speed
m/min |
Rope & Diam
mm |
Weight
kg |
Power & Supply |
|
LTD50-8M9 |
500 |
Without &
Wire & Winder |
9 |
8.3 |
68 |
400V/3Ph/50Hz |
|
LTD50-8M9VF |
500 |
Without &
Wire & Winder |
9 |
8.3 |
68 |
230V/1Ph/50Hz |
|
MT509 |
500 |
With &
Wire & Winder |
9 |
8.3 |
82 |
400V/3Ph/50Hz |
|
MT518 |
500 |
With &
Wire & Winder |
18 |
8.3 |
82 |
400V/3Ph/50Hz |
