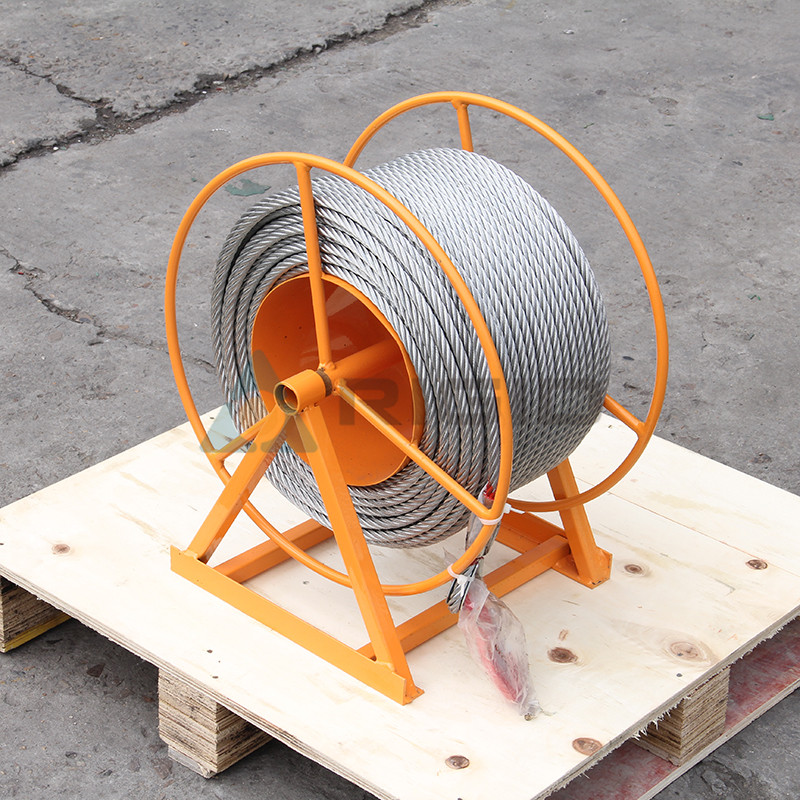

Steel wire rope for traction hoist is load bearing and corrosion resistant，which can be selected in various specifications. The wire rope is spooled by a meter-guide sheave machine and the meters are standard. Steel wire rope for traction hoist diameter can be from 6.5 to 14.0mm.
Maintenance: Wire rope for traction hoist will be coated with lubricant on the steel wire and rope strand when it is manufactured, when the wire rope is put into use, the lubricant will be consumed, and all kinds of harmful substances will adhere to the surface of the wire rope, resulting in abrasion between the wire rope and the rope block and rusting of the wire rope, so it is very important to clean and change the lubricant of the wire rope on a regular basis.
Technical Parameters of Wire Ropes for Lifting:
Rope & Diam
mm |
Description |
Minimum & breaking & force
kN |
|
6.5 |
5*K19S-SFC |
28.4 |
|
8.3 |
5*K19S-SFC |
49.4 |
|
9.1 |
5*K19S-SFC |
71 |
|
9.5 |
5*K19S-SFC |
67.9 |
|
10.2 |
5*K26WS-SFC |
86.5 |
|
14.0 |
5*K26WS-SFC |
157 |
